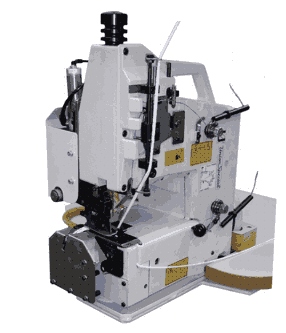

| New High Speed Bag Making Machines Series BM113 with Top Feed |
 |
| Styles / Tabling |
|
| BM113C1 Needle: 1 Threads: 2 Stitch range:8 mm, 9 mm, 10 mm Standard: 10 mm |
Same as BM113CE, but with electro-pneumatically operated thread chain cutter. Sewing speed: up to 2200 RPM, depending on sewing material and operation. |
| PN382A852 alternatively: PN382A735 |
Pedestal; Clutchless compact drive: 8 Nm, 50/60 Hz Pedestal; Clutchless electronic drive: 0.55 kW at 4200 RPM, 50/60 Hz |
| BM113C1HL Needle: 1 Threads: 2 Stitch range:8 mm, 9 mm, 10 mm Standard: 10 mm |
Same as BM113CE, but with electro-pneumatically operated hotthread chain cutter left of the needle. Control voltage: 230V, 50/60 Hz Sewing speed: up to 2200 RPM, depending on sewing material and operation. |
| PN382A852H alternatively: PN382A735H |
Pedestal; Clutchless compact drive: 8 Nm, 50/60 Hz Pedestal; Clutchless electronic drive: 0.55 kW at 4200 RPM, 50/60 Hz |
