New High Speed Bag Making Machines Series BM100

Common Specification for all Styles BM100

Internal forced lubrication system in closed casting with large outside mounted oil filter. Optimized sewing parts for easy processing of bag materials.
Minimized presser foot pressure and independent spring loaded chaining section to protect bag material and sewing machine. Low noise and vibration.
Stitch length: easily adjustable from 6.5-12.5 mm (2-4 SPI), standard setting 10 mm (2,5 SPI)
Sewing capacity: 12 mm
Sewing machine hand wheel: working diameter 150 mm (6 inch)
Standard needle: 9848GF250/100

Equivalent continuous A-weighted sound pressure level (LpAd) at workstation:
78,5 dB(A) according to ISO 10821-CB-M1 at 2500 RPM and 50% duty cycle.
Painting: white, similar to RAL 9002


 .
......401 SSa-1........
Styles / Tabling
Description
..

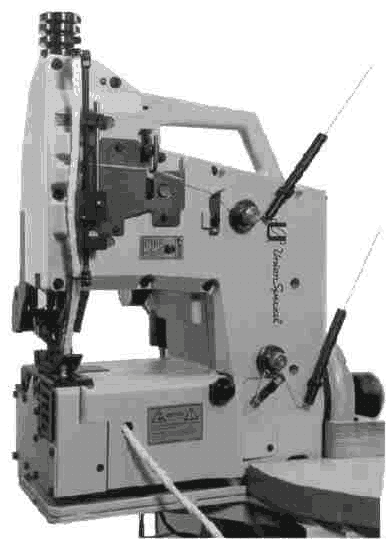

BM111C
Needle: 1
Threads: 2
Stitch range:6.5-12.5 mm
Standard: 10 mm		 Double locked stitch machine with built-in thread chain cutter and plain feed. For sewing bags. Attaching filling and discharging tubes on container bags. Guide for filler cord from the top for sealing the needle punctures. Crossing heavy seams is not possible.
Sewing speed: up to 2500 RPM, depending on sewing material and operation.
PN382A852
alternatively:
PN382A735
alternatively:
UN382G134L		 Pedestal; Clutchless compact drive: 8 Nm, 50/60 Hz

Pedestal; Clutchless electronic drive: 0.55 kW at 4200 RPM, 50/60 Hz

Non-submerged; Motor: 0.73 kW, 2850 RPM at 50 Hz
..
BM113CE
Needle: 1
Threads: 2
Stitch range:8 mm, 9 mm, 10 mm
Standard: 10 mm		 Double locked stitch machine with top and bottom feed. Without any thread chain cutter. Electro-pneumatically operated presser foot and upper feed dog lifter. Pneumatic presser foot spring. For inserting covers and bottoms, attaching filling and discharging tubes on container bags. Easy crossing of side seams and belts. Guides for filler cord from the top and / or below.
Sewing speed: up to 2200 RPM, depending on sewing material and operation.
PN382A852
alternatively:
PN382A735
alternatively:
UN382G134L		 Pedestal; Clutchless compact drive: 8 Nm, 50/60 Hz

Pedestal; Clutchless electronic drive: 0.55 kW at 4200 RPM, 50/60 Hz

Non-submerged; Motor: 0.73 kW, 2850 RPM at 50 Hz
