| 'Herakles' Machines - Heavy Duty Overedging Styles 81200 ..
|
 |
| Styles / Tabling | Description |
| 81200A Needle: 1 Threads: 2 Stitch range: 6-13 mm Standard: 8 mm |

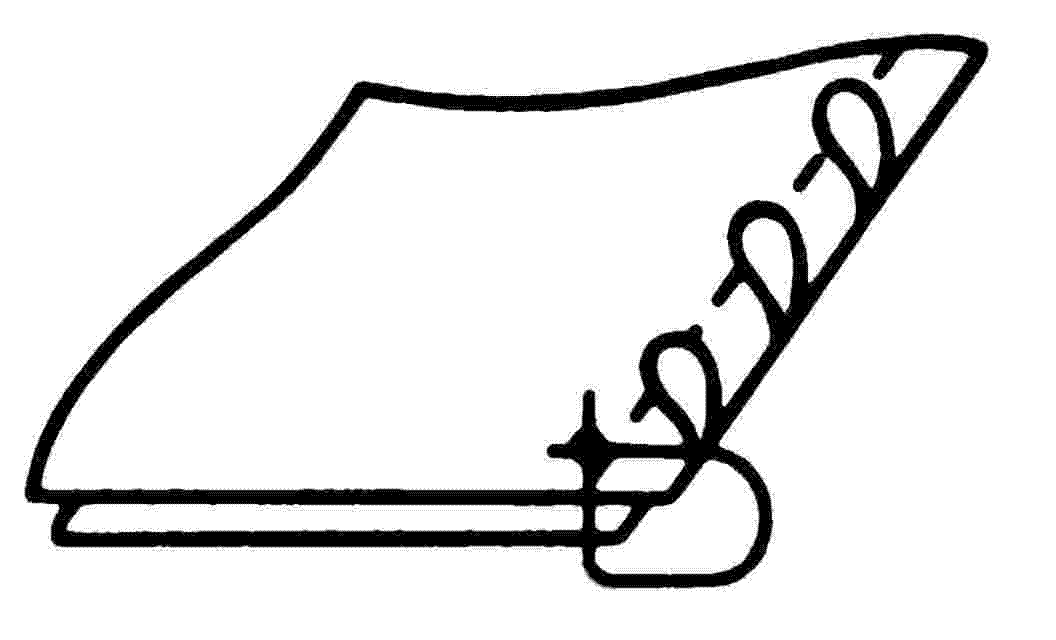

Overedging machine for overseaming on medium to heavy weight jute and burlap bags. Seam width 10 mm. Sewing capacity up to 16 mm. Plain feed, max. speed 2000 RPM, stitch type 502. |
| UN280G130 | Non-submerged; Motor: 0.55 kW, 2850 RPM at 50 Hz |
| 81200AZ3281 | Same as 81200A, but seam width 18mm. |
| UN280G130 | Non-submerged; Motor: 0.55 kW, 2850 RPM at 50 Hz |
| 81200B Needle: 1 Threads: 2 Stitch range: 6-13 mm Standard: 8 mm |
Same as 81200A, but seam width 6 mm. For overseaming on light to heavy weight jute and burlap bags.. |
| UN280G130 | Non-submerged; Motor: 0.55 kW, 2850 RPM at 50 Hz |
| 81200E Needle: 1 Thread: 1 Stitch range: 10-15 mm Standard: 14 mm |
Overedging machine with plain feed for abutted seams for dyeing and finishing as well as geotextile, felt and filter applications. Seam width 10 mm. Sewing capacity up to 16 mm. Max. speed 1600 RPM, stitch type 501. |
| UN280G130 | Non-submerged; Motor: 0.55 kW, 2850 RPM at 50 Hz |
| 81200EZ3254 Needle: 1 Thread: 1 Stitch range: 7-11 mm Standard: 14 mm |
Same as 81200E, with additional upper feed. Sewing capacity up to 13 mm. Max. speed 1200 RPM. |
| UN280G132 | Non-submerged; Motor: 0.55 kW, 1425 RPM at 50 Hz |
