 39500TYA |
| Styles / Tabling | Description |
| 39500TYA Needle: 1 Threads: 3 Stitch range: 4.2-6.4 mm Standard: 6.4 mm |

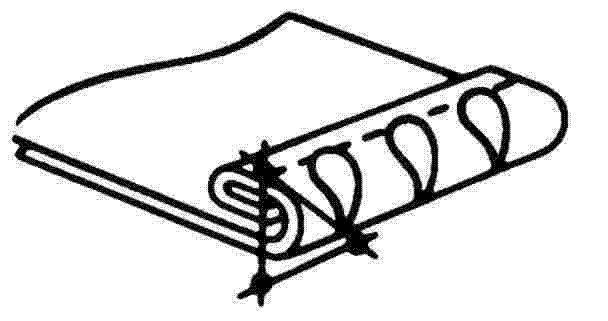

Overedging machine for seaming and hemming mesh bags, made of woven polypropylene or polyethylene fabric, with folder for durable turned-up seam of approx. 1/4" (approx. 7 mm) diameter. Automatic lubrication, with cam driven plain feed, max. speed 5000 RPM (depending on material and operation). Stitch type 504. |
| UH239G130 | Semi submerged; Motor: 0.55 kW, 2850 RPM at 50 Hz |
| 39500TYB Needle: 1 Threads: 3 Stitch range: 4.2-6.4 mm Standard: 6.4 mm |
Same as 39500TYA, but with reinforced feed mechanism. |
| UH239G130 | Semi submerged; Motor: 0.55 kW, 2850 RPM at 50 Hz |
| 51000B Needle: 1 Threads: 2 Stitch range: 3.6-7.3 mm Standard: 7.3 mm |
Left hand double locked stitch machine, with top and bottom feed, for seaming multi wall paper bags in automatic units. Automatic lubrication, max. speed 3800 RPM, stitch type 401. |
 |
 |
| 401 SSa-1 | 53700BZ4031A |
| 53700BZ4031A Needle: 1 Threads: 2 Stitch range: 3.5-7.0 mm Standard: 7 mm |
Double locked stitch machine with top and bottom feed for seaming medium to heavy cotton and woven polypropylene bag material, also suitable for sewing "Q"-bags. Automatic lubrication, max. speed 3300 RPM according to material and operation, stitch type 401. |
| UV216G130A | Fully submerged; Motor: 0.55 kW, 2850 RPM at 50 Hz with additional robe guiding block for easy operating the presser foot lifter. |
| 53700BZ4031 | Same as 53700BZ4031A, but with guides for filler cord from the top and / or from below for sealing the needle punctures. |
| UV216G130A | Fully submerged; Motor: 0.55 kW, 2850 RPM at 50 Hz with additional robe guiding block for easy operating the presser foot lifter. |
