PRODUCTION OF Q-BAGS

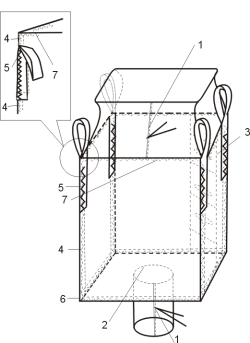

Q-Bag No.04

Description:
Q-bag 90x90 cm, height of bag 200 cm,
with big in- and small outlet spouts,
four loops in side seam

Operations:

No.

Description

Machine Style

1	Make tubes for in- and outlet spouts	56100MZ27
2	Insert spout to bottom panel	BM111C2
3	Attach reinforcing straps 4 pcs.	BML111C2
4	Close side seams	81300B2
5	Attach four belts at side seams	81500B2
6	Insert bottom panel to body	81300B2
7	Insert inlet spout to body	81500B2

In order to get complete information about individual time per operation, required quantity of machines and power and air consumption please contact Union Special GmbH.
