PRODUCTION OF Q-BAGS

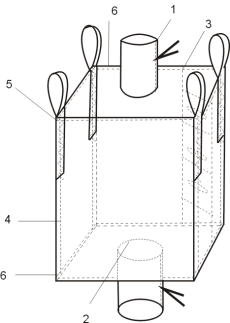

Q-Bag No.03



Description:
Q-Bag 90x90 cm, height of bag 200 cm,
with in and outlet spouts,
four loops in side seams


Operations:

No.

Description

Machine Style

1

Make tubes for in- & outlet spouts

56100MZ27

+ UV226G

2

Insert spout to top & bottom panel

BM111C2

+ PN382A

3

Attach reinforcement 4 pcs.

BML111C2

+ UV383A

4

Close side seams

80700C2

+ PN282A

5

Attach four belts at side seams

81500B2

+ UN280A

6

Insert top & bottom panels to body

80700C2

+ PN282A
In order to get complete information about individual time per operation, required quantity of machines and power and air consumption please contact Union Special GmbH.
